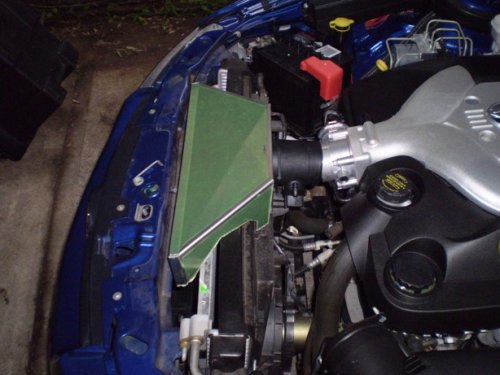

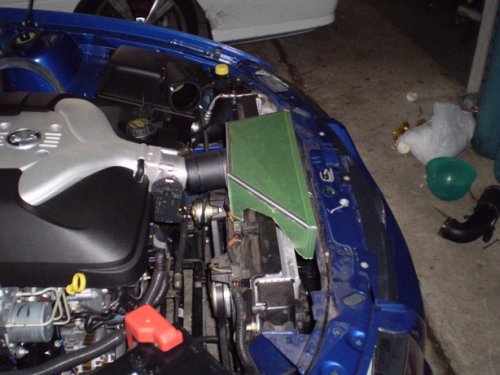

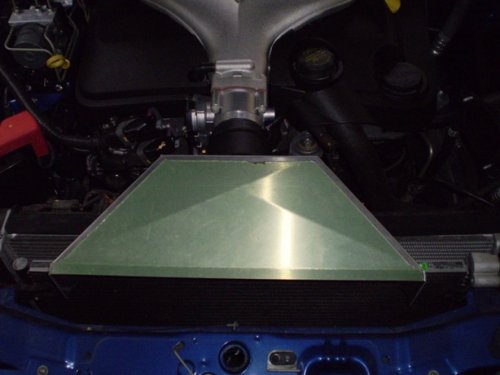

OK, we finally got the OTR CAI tested. She’s not pretty but it is only a test unit.
Using our normal 175kw test mule, filled with what ever 91 octane unleaded the owner could get cheap, made 190 rwhp with the stock intake. The car has previously made 191rwhp so that was close enough for me.
After installing the OTR intake we got 199.1 rwhp. 200+ rwhp is there for the taking with some more time spent on the tune.
The only draw back with these is that you will need a customised tune to use the intake, as the MAF gets a little freaked out and the MAF table needs a lot of work.
Production will start shortly and should be ready in around 3 weeks time.
Well after a lot of thought we have been making an OTR for the Alloytec VZ models.
We started off wondering if we could modify a V8 one to fit, but no chance as the room is very very limited. So I went about making a template for our sheet metal guy to whip up a test unit.
The test unit should be ready tomorrow to start testing on a few cars. The unit will have the MAF bolt directly to the OTR and then a silicon joiner will be used to join the MAF to the throttle body.
Here are a few of the pics in the template stages:
In addition to our braided clutch line, we now have a remote clutch bleed line. This runs up into the back corner of the engine bay making bleeding the clutch a simple job. No more lying on the ground to get into the bell housing, and more importantly no more clutch fluid running down the inside of your bell housing.
The kit is supplied with everything required to fit to your car. You will need to move the gearbox back on the bell housing to fit the line.
The lines are $135 each for the braided clutch line and remote bleeder, or $250 for the pair.
A full range of oil cooler kits are also available (engine oil and power steering) as well as a full range of header tanks for VT-VY radiators (standard location or remote mount) and engine catch cans.
Full installation prices including 2/3 bar mapping POA.
Well after a lot of R&D we are proud to offer the following packages:
Cat Back Exhaust
Custom single exhaust, not too loud, but a great note. We tried over a dozen different exhaust combinations until we settled with this one. This one makes the most power and has the best sound.
Cost: $550
Time required: 2.5 hours
Full Exhaust Package
3 to 1 headers, stainless substructure catalytic converters, custom single cat back system.
Cost: $1900
Time required:1 full day
Power increase: 5-10 rwhp
Tune Package
Custom dyno tune to suit your Alloytec Engine. Note: this is not a simple reflash with a tune from another car. Each tune is customised to suit your engine and exhaust setup using our in-house Dyno Dynamics dynomometer.
Cost: $990
Time required: 1 full day
Power increase: 20-25 rwhp
Exhaust and Tune Package
Full exhaust system and customised tune.
Cost: $2800
Time Required: 1-1.5 days
Power increase: 30-35 rwhp
For more information you can contact us on (02) 9680 2777 or send us an email.
Had a customer come in a few weeks ago with his VZ Clubby, it was already fitted with a so called “custom” exhaust. So we fitted a Ripshift and did an intake and tune on it.
Only managed 345rwhp, no better than the stock exhaust setup. The customer was not impressed that he had spent over $2500 on this exhaust and it wasnt performing at all.
So this morning we fitted a set of our custom 4-1 headers, stainless high flow cats and a dual 3in cat back. The difference? 35rwhp!
